Case Study
Case Study
How much can I save
by using a battery energy storage
system with a generator?
The Test
Hybrid Solution vs Generator only

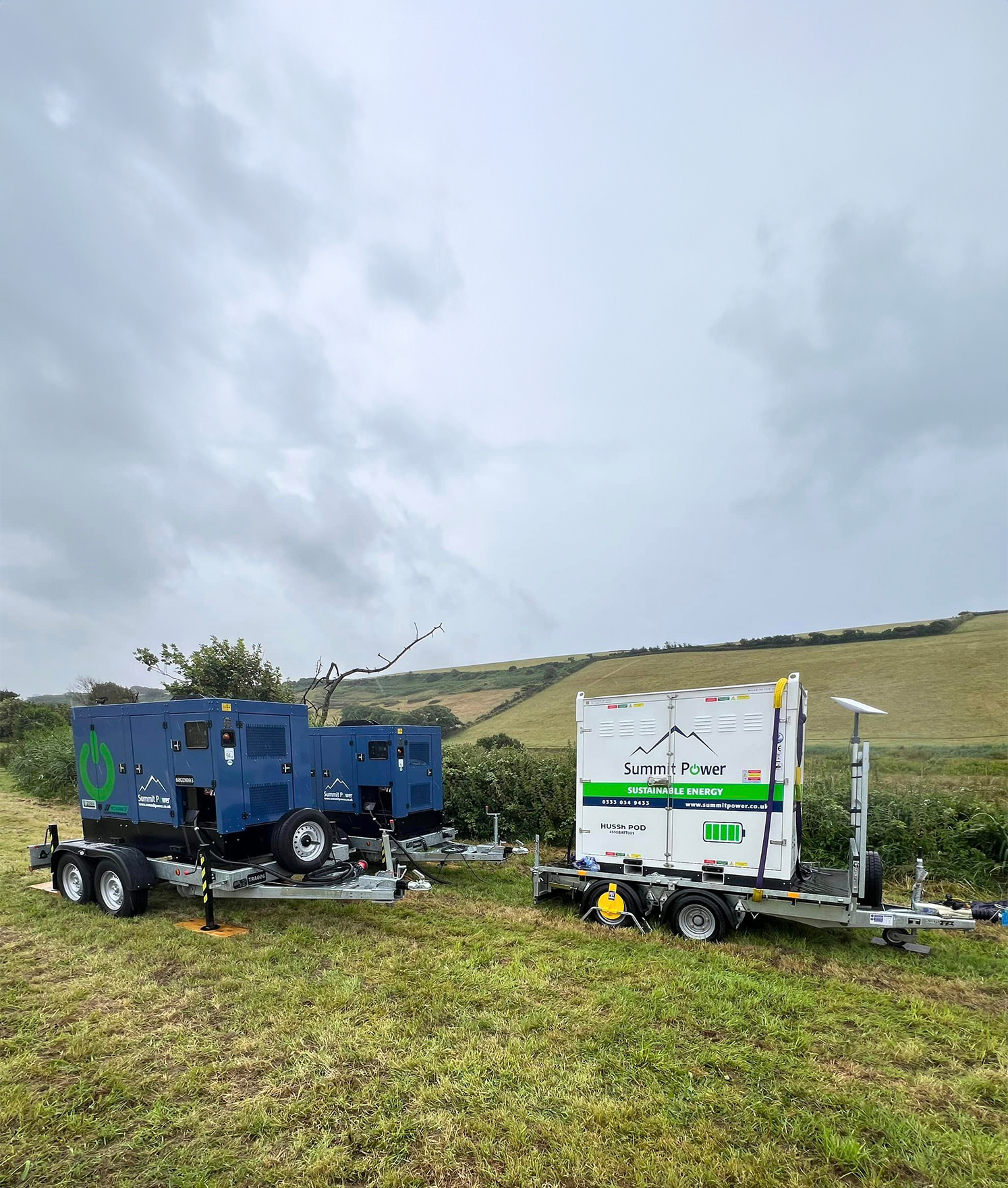

We conducted a comparison using data from a 28-day operation at a client’s site. While we only installed and operated a hybrid system consisting of a 60kVA generator and a 45/60 Battery Energy Storage System, we compared its performance against a standard diesel-only generator setup using industry-standard data.
All rental and operational costs for the hybrid model were monitored, and these results were then compared to the typical data from a conventional diesel generator package.
- Generator Run Time
- Fuel Consumption
- Fuel Costs
- Equipment Rental Costs
The Results
Performance Comparison: Conventional Generator vs. Hybrid Power
A 28-day controlled comparison was conducted using the following equipment:

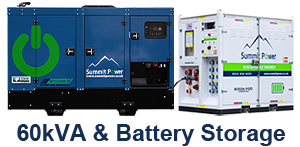

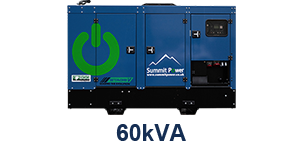

a 60 kVA Stage V diesel generator and a 45 kVA/60 kWh battery energy storage unit.
Conventional Generator
| Hybrid Power
| ||
| Run time (hrs) |
|
| |
| Fuel consumption per hour: | 7 | 7 | |
| Cost per litre | £1.50 | £1.50 | |
| Fuel cost | £7,056 | £2,188.15 | |
| Rental costs | £850 | £2,650 |
The Impact
Hybrid power vs generator

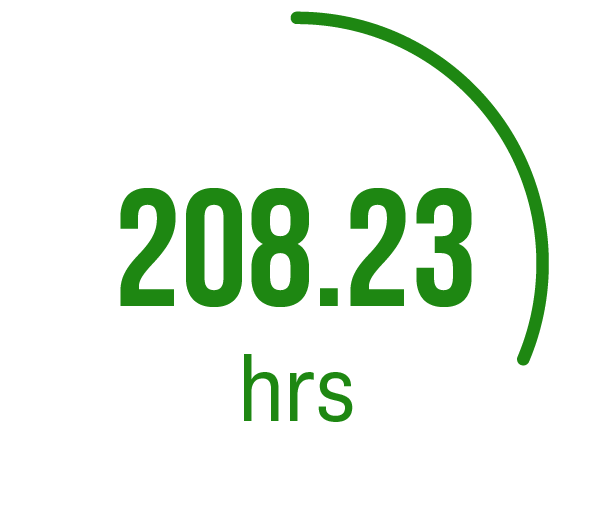

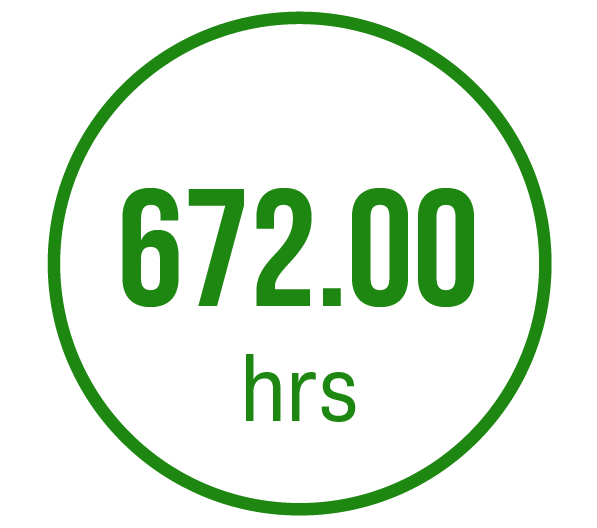

Run Time Reduction
reduction in run time
Fuel costs saved
total cost savings
[fuel & rental costs combined]
CO2 savings
Over the 28 days, the hybrid generator installation demonstrated a 69% reduction in fuel consumption, translating to £2,217.85 in total cost savings and a significant decrease in emissions.
Your Temporary Power
Could you save 69% in operating costs?
If you would like a review of your temporary power requirements and demand, Summit Power can help. We can advise on the most cost effective and sustainable solution Contact our team today and discover the Summit Power Advantage
