<span class="text-green">Electrical</span> Distribution from Summit Power

Electrical Distribution

Wide range of MDU’s from 250A to 2000A

Suitable for use on any temporary power installation and are manufactured to IP55 rating as standard. Supplied within a robust heavy duty galvanised crash frame.

Our event distribution is designed to support the needs for all event requirements.

Integrated lifting handles for easy handling & transportation.

250A MDU

Summit Power - 250A (MDU)

Rating

250A

Incomer

250A 3Φ

Outgoing

1 x 125A 3Φ
2 x 63A 3Φ

2 x 32A 3Φ
2 x 32A 1Φ

Weight

95 kg

Dimensions (LxWxH)

0.9 x 0.4 x 1.45 m

400A MDU

Summit Power - 400A (MDU)

Rating

400A

Incomer

400A 3Φ

Outgoing

2 x 125A 3Φ
2 x 63A 3Φ

2 x 32A 3Φ
2 x 32A 1Φ

Weight

108 kg

Dimensions (LxWxH)

0.9 x 0.4 x 1.45 m

800A MDU

800A MDU Electrical Distribution Unit from Summit Power

Rating

800A

Incomer

800A 3Φ

Outgoing

1 x 400A 3Φ
2 x 125A 3Φ

2 x 63A 3Φ
2 x 32A 3Φ

Weight

252 kg

Dimensions (LxWxH)

1.58 x 0.48 x 1.78 m

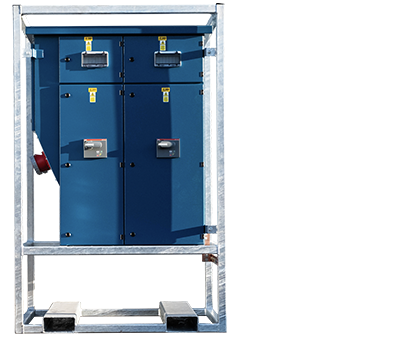

1250A MDU

Summit Power - 1250A (MDU)

Rating

1,250A

Incomer

1,250A 3Φ

Outgoing

2 x 400A 3Φ
2 x 125A 3Φ

2 x 63A 3Φ

Weight

566 kg

Dimensions (LxWxH)

1.28 x 1.05 x 1.98 m

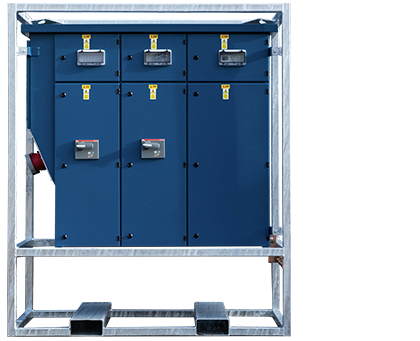

2000A MDU

Summit Power - 2000A (MDU)

Rating

2,000A

Incomer

2 x 1,000A 3Φ

Outgoing

4 x 630A 3Φ
2 x 125A 3Φ

2 x 63A 3Φ

Weight

721 kg

Dimensions (LxWxH)

1.68 x 1.05 x 1.98 m

2000A MDU

Summit Power – 2000A Distribution Unit

Rating

2,000A

Incomer

2,000A 3Φ

Outgoing

4 x 630A 3Φ
2 x 125A 3Φ

2 x 63A 3Φ

Weight

741 kg

Dimensions (LxWxH)

2.06 x 0.9 x 2.08 m

32A Event Distribution

32A-(Event-Distribution)_main

Rating

32A

Incomer

32A 3Φ

Outgoing

6 x 32A 1Φ
6 x 16A 1Φ

6 x 13A 1Φ

Weight

27 kg

Dimensions (LxWxH)

0.53 x 0.47 x 0.62 m

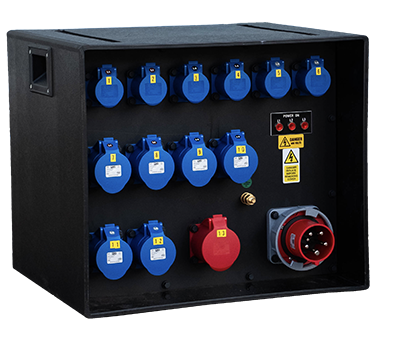

63A Event Distribution

Summit Power - 63A (Event-Distribution)

Rating

63A

Incomer

63A 3Φ

Outgoing

1 x 32A 3Φ
6 x 32A 1Φ

6 x 16A 1Φ

Weight

23 kg

Dimensions (LxWxH)

0.53 x 0.47 x 0.47 m

125A Event Distribution

125A-(Event-Distribution)_main

Rating

125A

Incomer

125A 3Φ

Outgoing

1 x 63A 3Φ
4 x 32A 3Φ

6 x16A 1Φ
6 x 32A 1Φ

Weight

38 kg

Dimensions (LxWxH)

0.56 x 0.42 x 0.64 m

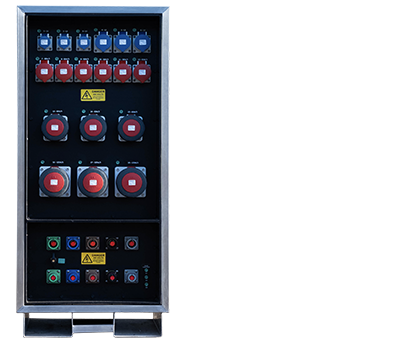

400A Event Distribution

Summit Power - 400A (Event Distribution)

Rating

400A

Incomer

400A 3Φ

Outgoing

400A 3Φ Powerlock (unprotected)

3 x 125A 3Φ

3 x 63A 3Φ

6 x 32A 3Φ

3 x 32A 1Φ

3 x16A 1Φ

Weight

118 kg

Dimensions (LxWxH)

0.62 x 0.5 x 1.36 m
